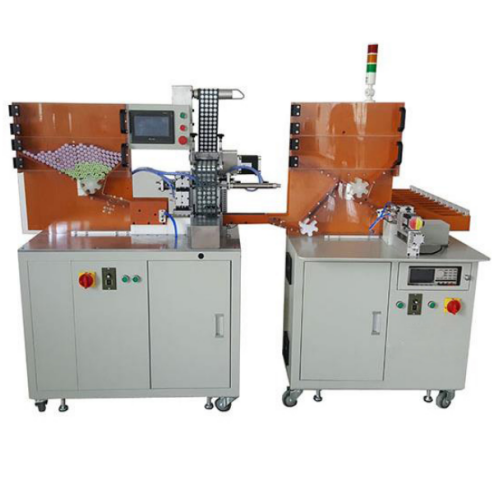

18650 26650 32650 21700 Cylindrical Battery Sorting And Battery Insulation Paper Sticking Two in One Machine

Introduction

The sorting and battery insulation paper sticking machine is a kind of testing and sorting equipment which is suitable for cylindrical battery to be pasted first, then checked the internal resistance, voltage and other parameters. It is equipped with a high-precision internal resistance, voltage automatic testing system. According to the internal resistance set on the computer software, the equipment accurately sends the battery to the designated position according to the voltage value, and the system can equip with optional channel battery sorter which can realize (5 / 9 / 11 / 13 / 22) sorting. The overall design efficiency of this equipment is about 4500 electric cores per hour, the structure design is simple and generous, and the performance is stable.

Technological Process:

Filling the whole box of battery→Motor rotation→The cylinder pushes the battery out→Belt transport battery→Battery launch→Battery entering conveyor belt→Stop cylinder released→Lead screw drives cylinder battery team→The battery is full of four lead screws to shift the battery→Under cylinder pressure→Move the battery to the highland barley paper position→Secondary positioning of cylinder to battery→Barley paper pasted on stepper motor→Waste recovery→Finished battery to discharge chute→The cylinder pushes the battery onto the sorter belt→Battery launch→Test battery→After the battery is full, the manipulator grabs the battery→Battery sorting→Manual packing

Mechanical Structure

Compact structure design, beautiful appearance and small space occupation;

Manual packing and loading of equipment;

The equipment adopts high quality and thick cold-rolled sheet metal, aluminum profile frame;

The equipment is equipped with universal movable casters, which makes it easy to move and handle the equipment.
