16-Channel 5V 6A Pouch Battery Hot Press Formation Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-CY5V6A-16W
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

8-Channel 5V 6A Pouch Battery Hot Press Formation Machine

I. Equipment Overview

1. Function (Principle) Introduction
This equipment is primarily for the formation of polymer battery cells under high-temperature and pressure conditions. It allows for denser SEI film formation, more thorough capacity activation, and better capacity consistency. The system supports high-current charging, shortening formation time and reducing the battery production cycle.
The system includes a 16-channel formation cabinet and a fixture. The fixture is arranged in parallel, with 9 layers of heating and pressing plates and 16 5V6A channels, fully integrated with the cabinet.

2. Main Functions

The equipment encompasses a temperature regulation system, over/under-temperature alert mechanism, over/under-voltage monitoring system, pressure management system, formation cabinet unit, and fixture assembly. Key features include layer-specific temperature control, pressure regulation, charge/discharge functionality, overcharge/overdischarge safeguards, secure tab-to-contact connectivity, data communication capabilities, automated post-process data logging, post-charging voltage classification, post-discharging capacity grading, and smoke detection alarm.

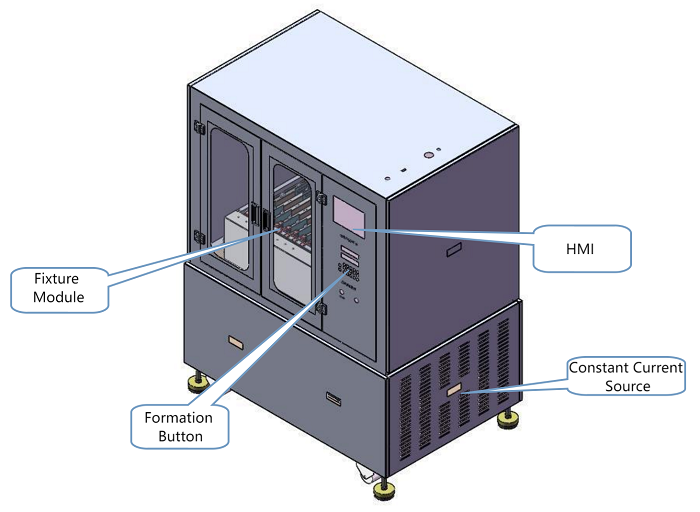

3. Equipment Structure

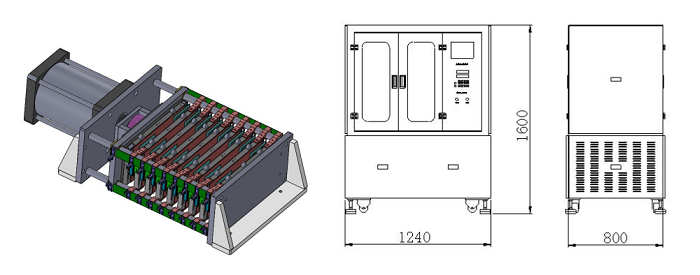

4. Fixture Structure and Overall Dimensions (for reference)

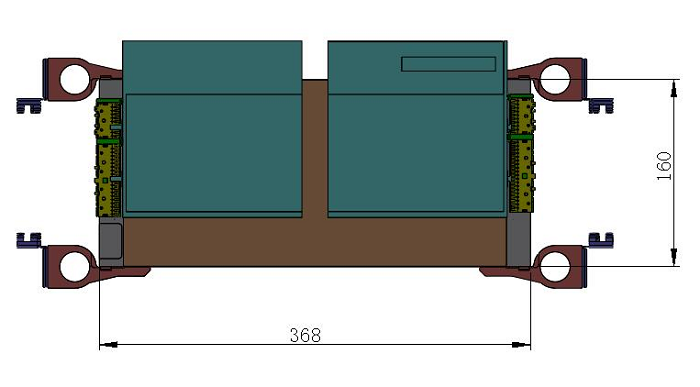

5. Battery Placement

6. Operation Process:
Open cabinet door → Place battery → Close cabinet door → Set parameters → Fixture clamps → Start heating → Start formation → Formation completes → Fixture releases → Open cabinet door → Remove battery

7. Equipment Features

1. Compatible with 3–12mm cell thickness, no need to adjust fixture or replace tab blocks

2. Uses spring-type nickel alloy contacts, easily pluggable contact boards, resistant to electrolyte corrosion, easy to clean

II. Technical Parameters

1. Basic Parameters

No.	Parameter Name	Specification	Description
1	Heating Method	Fiberglass heating plate	Independent temp. control per layer
2	Temp. Control Method	Independent per layer	One-touch touchscreen setting
3	Temp. Rise to 65℃	15–20 Min	Target temperature: 65℃
4	Temp. Control Range	Room Temp – 85℃	Accuracy: ±2℃
5	Pressure Output	80–180 KG	Cylinder ∅ 200mm
6	Cylinder Drive	Left to Right	Parallel pressing
7	Pressure Accuracy	≤±5KG	Top and bottom layers
8	Execution Mode	Independent by fixture; temp/pressure global	One product type per cycle
9	Pressure Setting	Input cell size & pressure/time; auto-calculate	Data can be saved & reused
10	Plate Spacing	22mm	Optimal for operation
11	Tab Contact	Nickel alloy spring-type	No plating, easy to clean
12	Tab Block	Teflon injection-molded	Flame-retardant, corrosion-resistant
13	Channels	16	Controlled via upper software
14	Voltage Output Range	DC 20mV – 4500mV
15	Voltage Accuracy	±0.1%FS ±0.1%RD	Resolution: 1mV
16	Current Range	DC 20 – 2000mA
17	Current Accuracy	±0.1%FS ±0.1%RD	Resolution: 1mA
18	Steps per Cycle	1–32
19	Voltage Qualification Rate	≥99%	Excludes non-equipment factors

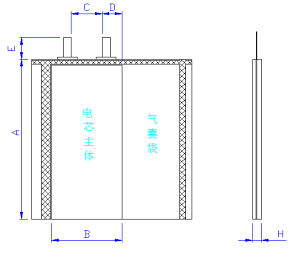

2. Applicable Product Parameters

	Parameter	Range
	Cell Length (A)	30–110mm
	Cell Width (B)	35–100mm (excluding airbag)
	Cell Thickness (H)	3–12mm
	Tab Spacing (C)	5–85mm
	Tab Shoulder (D)	≤25mm
	Tab Length (E)	≥8mm
	Polarity Direction	Airbag side is the positive side(adjustable)

III. Main Software Functions

1. Modes: Constant current charge, constant current/voltage charge, constant current discharge, rest, and cycle. Cut-off conditions: voltage, time, final current, final capacity.

2. Step execution resumes on power loss, manual pause, software closure, communication error, or abnormal stop.

3. All step curves and test data are saved per battery; real-time and historical data viewable per channel; supports Excel export (single/batch), and auto-export after test ends.

4. Multiple inspection UIs: graphical, summary, classified, abnormal data views.

5. Supports protection per step for voltage, current, temperature, pressure, with alarm notifications.

6. Minimum PC requirements: PII/300 CPU, ≥2GB RAM, ≥250GB HDD, EGA/VGA display, keyboard & mouse, Windows 7+, 1 USB port, 1 Ethernet port.

7. Operation software included; PC supplied by user.

8. Protection Functions:

(1) Over-voltage, under-voltage, over-current, under-current, over-capacity

(2) Configurable voltage/current protection values, alerts & logs

(3) Temp/pressure over-range alarm lights

(4) Emergency stop button: fixture stays closed, power off

(5) Smoke detector triggers buzzer alarm on detection

9. Three-color Indicator Lights:

Yellow: Standby (fixture not pressed)

Green: Operating (charging in progress)

Red: Fault (e.g., over/low temp/voltage, smoke, communication error)

IV. Installation Requirements

1. Power Supply: AC380V, 50Hz, 3-phase 5-wire, voltage fluctuation ±10%

2. Max Power Consumption: 2KW

3. Compressed Air: 0.3–0.75MPa, fluctuation ±1% (clean, dry, oil-free)

4. Dimensions & Weight:

Weight: ~0.8T

Size: L1.2m × W0.82m × H1.6m

Color: Light gray or per customer

5. Environment:

Temperature: 0–45℃

Humidity: 30%–75%RH, dry, ventilated, acid/alkali-free

Ground: Protective grounding

V. Standard Accessories (per unit)

No.	Name	Model	Unit	Qty
1	Namecard Paper	Customized	Sheet	12
2	Communication Cable	3*0.3mm² Shielded	Meter	5
3	Plug	Universal	Piece	20
4	Communication Module	USB-RS485	Piece	1

VI. Key Components

No.	Name	Spec/Model	Unit	Qty
1	Air Switch	NXBLE-63 C40	Unit	1
2	Contactor	CJX2-3210	Unit	1
3	Contactor	CJX2-2510	Unit	3
4	Touchscreen	TPC7012Es	Unit	1
5	Solenoid Valve	4V220-08B	Piece	3
6	Solenoid Valve	2V025-08B	Piece	6
7	Cylinder	SC250	Piece	1
8	PLC Controller	CY-V22	Unit	1
9	Temp Control Module	TP27N	Unit	1
10	Load Sensor	0–3T	Piece	1
11	Power Supply	LRS-200-24	Unit	1
12	Constant Current Source	Neware 5V2A-16	Unit	1
