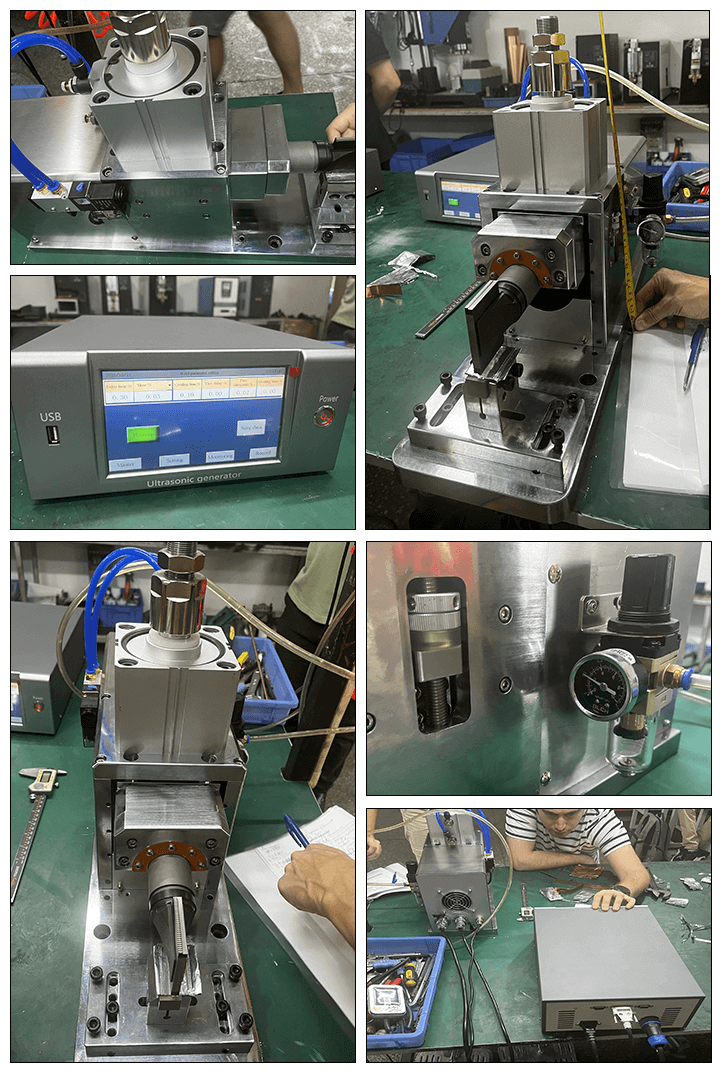

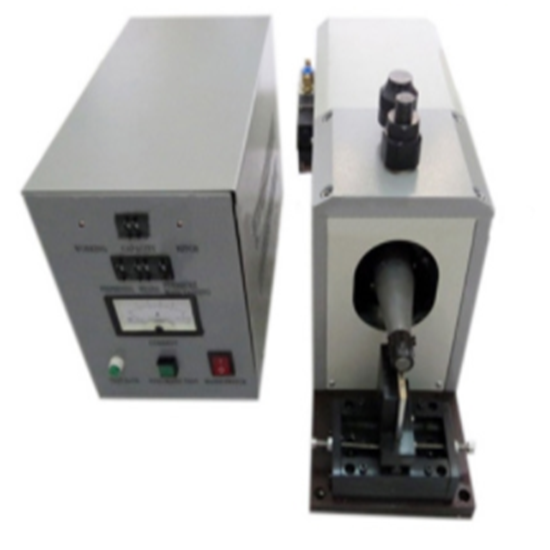

1500W Ultrasonic Spot Welding Machine for Al Battery and Al-Ni Tabs

1 The TMAX-USW-PC1500 ultrasonic metal welder machine is mainly used for Al can battery Al-Ni composite strip tab welding on Al shell for finished cell with New designed mould.

2 It can also weld Al can battery Al shell weld tab before battery finished with changing aluminum shell welding mould.

We will continue to  provide better Ultrasonic Welding Machine for you.

SPECIFICATIONS:

Model	TMAX-USW-PC1500
Source voltage	110V AC or 240V AC 50/60Hz
Power	1500W
Warranty	One Year limited warranty with lifetime support
Type	Ultrasonic spot welding machine
Product dimension	450*230*160mm
Control box dimension	330*190*250mm
Package size	600*420*500mm, About 55kg
Frequency	24KHZ
Welding head material	W6M5Cr4V2 high-speed steel, with six welding points in one head.
Working stroke	15mm
Welding time	0.5-2s
Control mode	CPU Control
Air supply	≥0.5MPa (≥72.5psi)
Welding ability	1 For copper : 0.15~2+0.15~2mm. 2 For aluminum : 0.2~3+0.2~3mm. 3 For Nickel : 0.1~1.2+0.1~1.2mm.
Main accessories	1 “Welding head”-6pcs, 2 “Connect line”-2pcs, 3”Foot pedal”-1pcs 4 “Power line with customized plug”-1pcs, 5 “Gas-pressure meter”-1pcs
