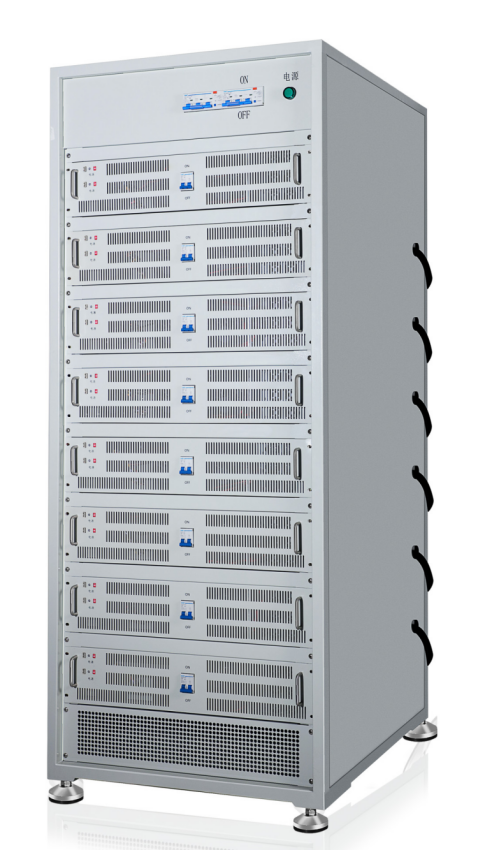

120V 30A Regenerative Type Aging Machine Battery Pack Charging And Discharging Testing Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-TG8000-120V30A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

120V 30A Regenerative Type Aging Machine Battery Pack

 Charging And Discharging Testing Machine



Application:

Production inspection of battery modules in battery production enterprises;

High current charging and discharging detection of EV/HEV power battery system;

Perform battery simulation testing on actual road conditions;

Daily maintenance of battery modules in battery factories and charging stations;

Research institutions conduct high current charging and discharging detection, as well as battery performance testing on battery modules.




II. System Function Description:

TG8000 series electric energy feedback battery charging and discharging aging system is a test system of charged energy feedback power supply system, which can realize AC DC conversion to charge the electric energy of the grid to the battery module, and can also feed back the electricity released from the battery module to the grid in the form of grid connected inverter, so that this part of electric energy can be recycled. The equipment is a two-way battery charging and discharging power supply processing system controlled by computer background software.



III.Applicable scope of equipment:

1) Battery module production inspection of battery manufacturers;

2) EV/HEV power battery system high current charge and discharge detection;

3) Carry out battery simulation test under actual road conditions;

4) The research institute conducts high current charging and discharging tests on battery modules, battery performance tests, etc;

5)Daily battery module maintenance of battery factory and charging station;



IV. Technical parameters:

Indicator items

Indicator parameters

Equipment model

TG8000-120V30A

Number of single machine channels

AC 380V ±15% / 50Hz±2Hz

Maximum output power

18KW

Charge discharge power factor

>0.99 (full load)

Total harmonic distortion rate of charging and discharging current

<5% (full load)

Overall efficiency

85% MAX

Sampling resolution

AD24bit

Input impedance

≥1MΩ

Voltage

Output voltage range

Charging: 5V~120V, discharging: 5V~120V continuously adjustable

Accuracy

±0.1%FS

Sampling time (S)

<1S

Stability

±0.1%FS

Current

Output current range

Charge and discharge: 100mA~30A continuously adjustable

Accuracy

±0.1%FS

Sampling time (S)

<1S

Stability

±0.1%FS

Power

Accuracy

±0.1%FS

Time

Step time range

≤ (365 * 24) hours/step time format supports 00:00:00 (H, min, S)

Rise time of charging and discharging current

(5%~95%)

≤20ms

Charge discharge switching time

≤40ms

Data record

Data recording conditions

time frame Δ t: (10ms-60000 s)

Voltage Δ U:(7.4V ~ 120V

Current Δ I:(0.1 ~ 30A

Recording frequency

50Hz

Charge

Charging mode

Constant current charging, constant voltage charging, constant current constant voltage charging

Cut off conditions

Voltage, current, relative time, capacity, unit voltage, unit temperature

Discharge

Discharge mode

Constant current discharge



Cut off conditions

Voltage, current, relative time, capacity, unit voltage, unit temperature

Loop

Cycle test range

1~65535 times



Number of work steps per cycle

254 step



loop nesting

With nested loop function, supporting up to 3 layers of nesting

Protection

Security protection (global protection)

Power loss data protection



The safety protection conditions can be set, and the setting parameters include: voltage upper limit, voltage lower limit, current upper limit, current lower limit, energy, monomer voltage, monomer temperature

Equipment protection function

Transformer over temperature protection, output short circuit protection, power module over temperature protection, equipment over-voltage protection, equipment over-current protection, equipment battery reverse connection protection, emergency shutdown.

Equipment exhaust mode

Forward air and backward air

Whether the equipment has emergency stop function

Yes

Isolation mode

High frequency isolation

Cooling mode

Forced air cooling

Channel characteristics

The constant current source and constant voltage source adopt independent double closed loop structure

Channel control mode

Independent control

Voltage and current detection sampling

Four wire connection

Weight

800kg

Degree of protection

IP20

Noise

<75dB

Database

MySQL database is used for centralized management of test data, which can be uploaded to the client's background server

Communication mode of upper computer

Based on TCP/IP protocol

Data output mode

EXCEL, TXT, charts

Working temperature

-10℃~40℃
