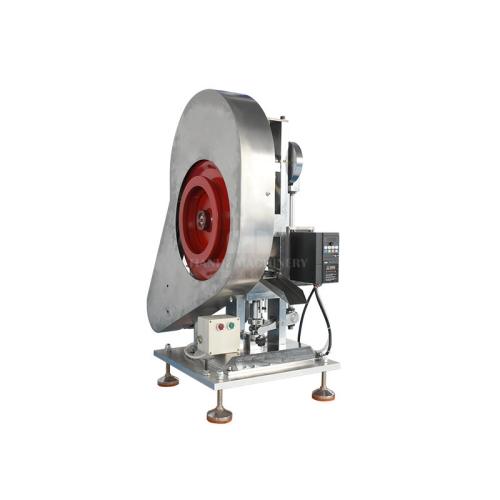

120KN Manual Handheld Single-Punch Drug Tablet Press Equipment

Introduction

The TDP-120D single-punch tablet press can compress powder and granular raw materials into large tablets and is widely applicable to pharmaceutical factories, chemical plants, food factories, hospitals, research institutions, laboratories for trial production and small-scale production. The TDP-120D single-punch tablet press can produce tablets of special shapes such as round tablets, irregular-shaped tablets and ring-shaped tablets. This machine features high pressure, large pressed sheet diameter, and variable frequency speed regulation to adjust the operating speed of the equipment.

This machine has excellent performance, strong adaptability, is easy to use and maintain. This machine has increased mechanical strength and power compared with the original TDP series tablet press, thus having a greater tablet pressing force. At the same time, the filling depth has been increased, thereby expanding the diameter and thickness range of the tablets. Therefore, this machine can meet the requirements of the pharmaceutical industry for pressing various Chinese and Western medicine tablets and similar products in other industries, and is widely welcomed by users.

Technical parameter

Tablet pressing pressure (Kn)	120
Tablet diameter (mm)	60
Filling depth (mm)	45
Tablet thickness (mm)	20
Production capacity (pcs/h)	2100
Motor power (Kw)	4.0
Overall dimensions (mm)	620700850
Overall machine weight (Kg)	210
