100MWH/1GWh LFP/NMC/LTO Pouch Cell Production Line Pilot Line Turn Key Solution



I. introduction

Pouch cell is a flexible and lightweight rechargeable battery. It features a flat, pouch-like package that holds the battery's active components. Pouch cells offer advantages such as high energy density, flexible form factor, excellent power delivery, lightweight design, improved thermal characteristics, and longer cycle life. These qualities make pouch cells a preferred choice for applications in portable electronics, electric vehicles, and renewable energy systems.


II. Machine list

NO.

Process

Item name

1

Cathode mixing

Vacuum mixer

2

Anode mixing

Vacuum mixer

3

Slurry feeding

Slurry feeding system

4

Cathode coating

Slot die coater

5

Anode coating

Slot die coater

6

NMP recycling

NMP recycling system

7

Cathode electrode rolling press

Roller Press

8

Anode electrode rolling press

Roller Press

9

Cathode slitting

Automatic slitting machine

10

Anode slitting

Automatic slitting machine

11

Cathode die cutting

Automatic die cutter

12

Anode die cutting

Automatic die cutter

13

Stacking

Automatic stacking machine

14

Hot press test

Hot press testing machine

15

Case forming

Case forming machine

16

Sealing

Top and side sealing machine

17

Drying

Vacuum oven

18

Filling

Automatic electrolyte filling machine

19

Formation

Hot press formation machine

20

final sealing

Final sealing machine

21

Grading

Grading cabinet

22

Power auxiliary

Dehumidification system

23

Vacuum pump

24

Air compressor

25

Deionized water machine

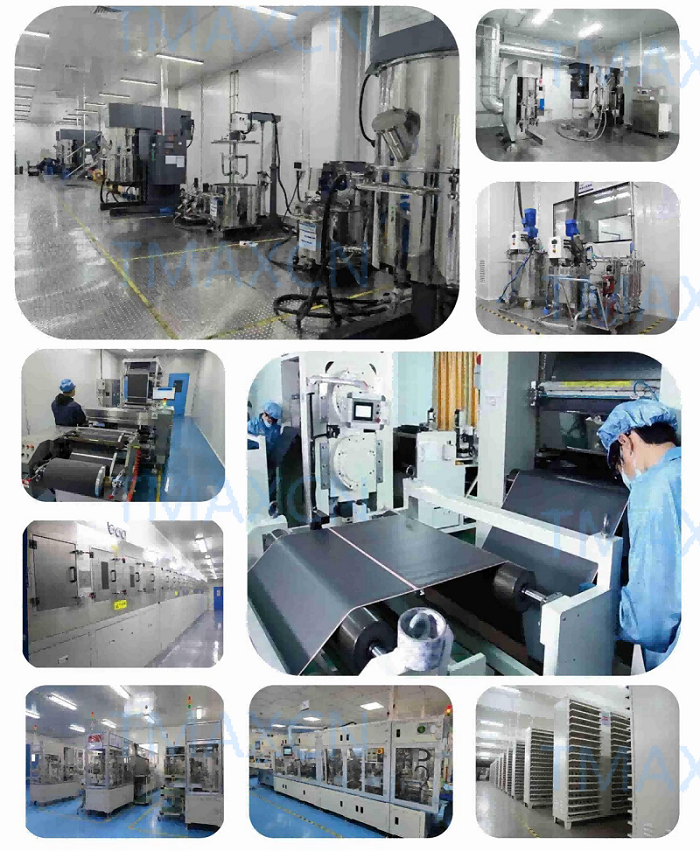

III. Plant display

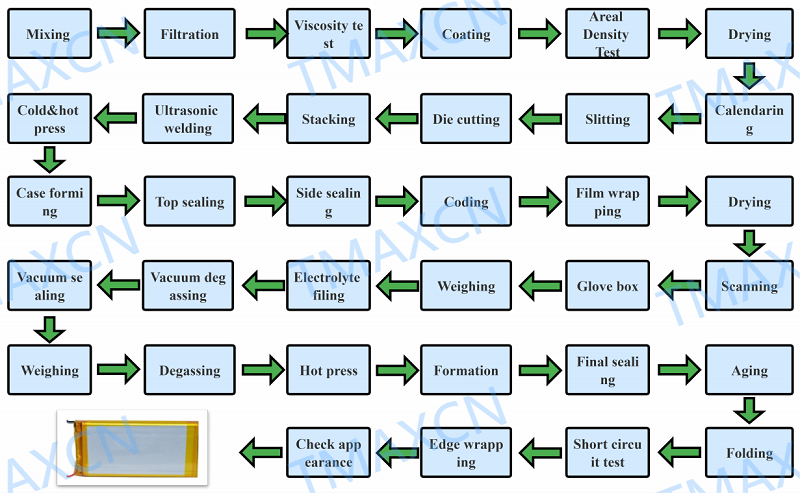

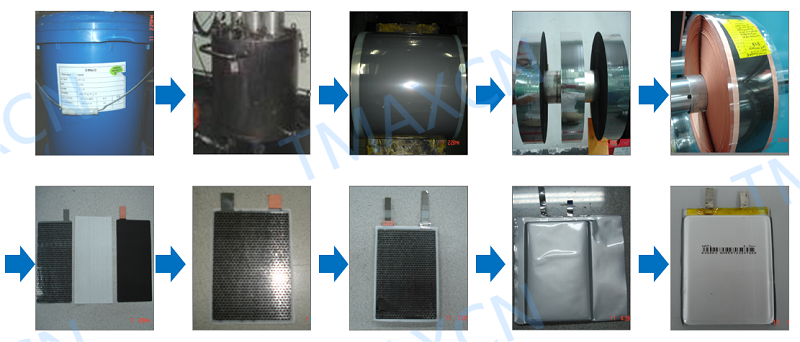

IV. Production process



V. Procurement process

TMAX follows a comprehensive procurement process to ensure a seamless experience for our customers.

Initial Consultation: We have an in-depth discussion with the customer to understand their battery production requirements, machine specifications, and budget constraints.

Proposal Preparation: Based on the consultation, we create a detailed proposal that outlines our recommended battery-making machines, pricing, delivery timelines, and additional services or support.

Proposal Presentation: We present the proposal, highlighting the features and benefits of our machines, addressing customer questions, and explaining how our solution meets their needs.

Negotiation and Agreement: We engage in negotiations to address concerns and modify the proposal if needed, aiming to reach a mutual agreement on pricing, terms, and conditions.

Purchase Order: The customer issues a purchase order (PO) that formalizes the agreement, specifying quantities, prices, delivery dates, and contractual obligations.

Order Fulfillment: We manufacture or source the battery-making machines according to agreed specifications, conducting quality control checks to ensure high performance and reliability.

Shipment and Delivery: We handle packaging, transportation, and customs clearance, providing tracking information and updates on the shipment's status.

Installation and Training: Our technicians offer installation services and comprehensive training on machine operation, maintenance, and troubleshooting.

Post-Sales Support: We provide ongoing customer support, including assistance with spare parts, maintenance, upgrades, and expansions, to ensure customer satisfaction.

By following this streamlined procurement process, we deliver high-quality battery-making machines tailored to our customers' requirements while providing excellent support throughout their lifecycle.


VIManufacturing Cycle and Planning

No.

Project

1st month

2nd month

3rd month

4th month

5th month

6th month

1

◎ Confirmation of idea/plan/specification

























2

◎ Customized design for key parts

























3

◎ Mechanical part design

























4

◎ Control part design

























5

◎ Procurement of processed parts/outsourced parts

























6

◎ Mechanical assembly

























7

◎ Electrical debugging

























8

◎ Single test

























9

◎ Linkage trial operation and on-site customer placement

























10

◎ Trial run/final acceptance

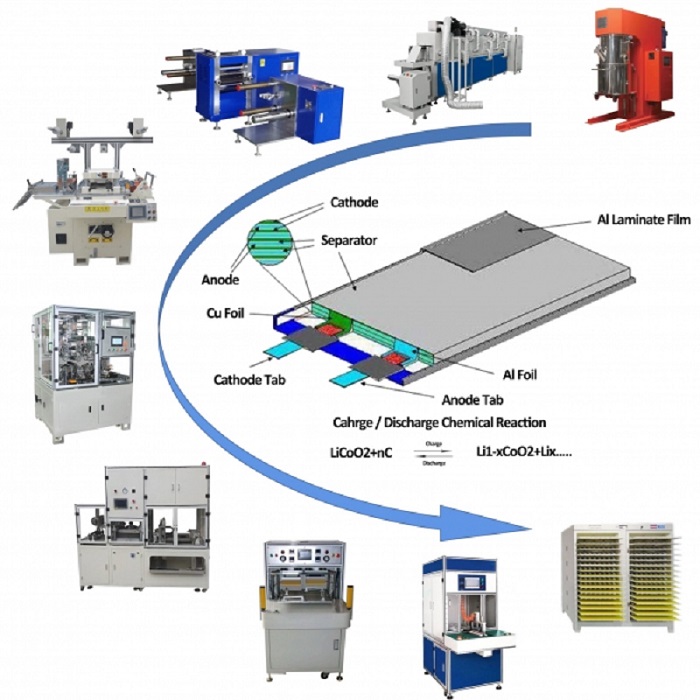

Pouch Cell Production Plant
