0.5 mm Pure Aluminum Spacer for Coin Cell

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-spacer-0
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    2 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

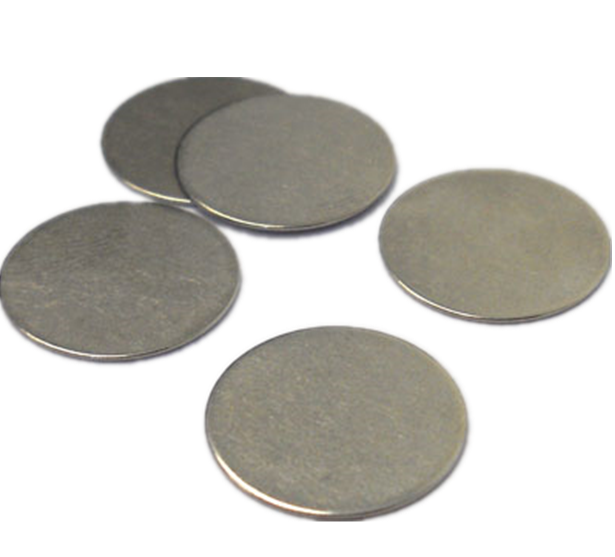

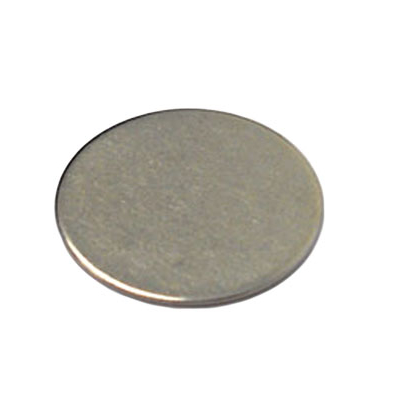

0.5 mm Pure Aluminum Spacer for Coin Cell


Packing: 100pcs /bag

specifications
size Diameter 15.8mm  thickness 0.5mm

Other type coin cell:

Name Model/Size Material
Coin cell case CR2032 304ss/316ss/Gold-Coated/Al-Coated/ Kapton
CR2016 304ss/316ss/ Kapton
CR2025 304ss/316ss
CR2450 304ss
CR2430 304ss/316ss
CR2325 304ss
CR1620 304ss
CR1632 T:3.2mm D:16mm  304ss
CR1616 304ss
CR1220 304ss
CR1820 304ss
CR0927 304ss
CR1220 304SS
CR1025 304SS
CR1016 304SS
CR3048 304SS
CR3032 304SS
CR2477 304ss
CR2032 Lithium air case 304ss
Coin cell spacer 15.8*0.2mm 304ss/316ss
15.8*0.5mm 304ss/316ss/Pure aluminum
15.8*0.8mm 304ss/316ss
15.8*1mm 304ss/316ss
20.2*0.4mm 304ss
Wave Spring                 (Belleville Washers) 15.4O.D*10.5 I.D*1.0Height*0.25 Thickness mm 304ss/316ss
Coin Cell Conical Spring 15.4 mm dia * 1.1 mm height *0.25 mm thickness 304ss/316ss
20*1.7mm 304ss
