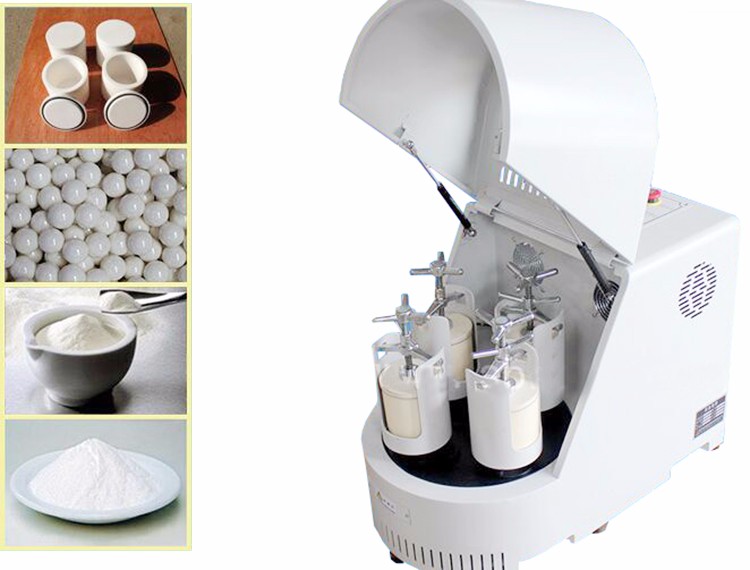

0.2-50L Small Lab Planetary Ball Mill Machine with Jars and Balls
Overview:
1. Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.
2. The Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).
3. It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.
4. It can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.
Optional Ball and Jar

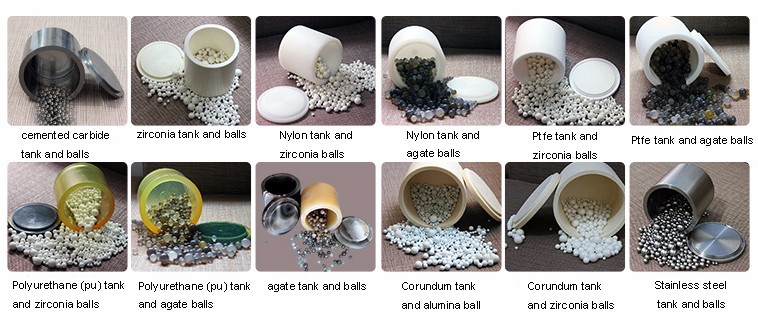

1. Material of ball milling tank: stainless steel, agate, corundum, tungsten carbide, nylon, zirconia, polytetrafluoroethylene, lined with polyurethane and so on; The principle of choice is that the material of the ball mill can not affect the appearance of the material to be ground; Grinding easy to oxidation, must be air-insulated materials, you can use vacuum ball mill tank.
2. Grinding ball material are: chrome steel, stainless steel, agate, alumina, zirconia,Selection principle is the grinding ball material on the material to be polished does not affect the appearance of pollution; Grinding ball material density and hardness must be larger than the abrasive material; Ball mill specifications are: Φ5, Φ8, Φ10, Φ15, Φ20
Working principle:

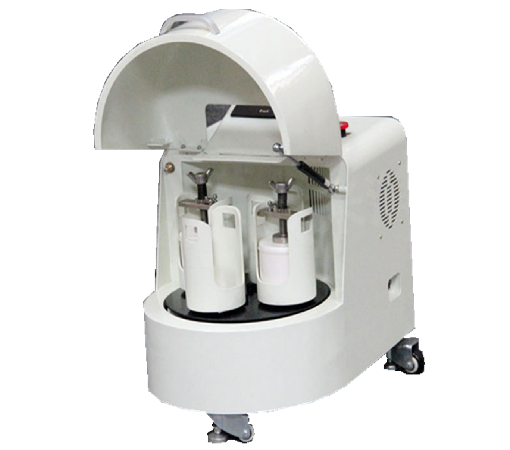

TMAX-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.
Specifications:
Model
Planetary Ball Mill Machine TMAX-XQM-0.4
Grinding tank volume (L)
0.1L*4
Grinding tank material
According to requirements
Grinding media
According to requirements
Maximum loading per tank
Material and grinding medium does not exceed two-thirds of the volume
Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.
We can provide different capacity of planetary ball mill according to your requirement.
Model
Power supply
Motor power
Converter power
Operating time setting
(min)
Positive and negative alternating operation time(min)
Adjustable speed
Revolution
(rpm)
Adjustable speed
Rotation
(rpm)
Noise
<db
XQM-0.2
220V 50HZ
0.75KW
1-9999
1-999
30-335
70-670
60db
XQM-0.4
220V 50HZ
0.75KW
1-9999
1-999
30-335
70-670
60db
XQM-1
220V 50HZ
0.75KW
1-9999
1-999
30-335
70-670
60db
XQM-2
220V 50HZ
0.75KW
1-9999
1-999
30-335
70-670
60db
XQM-4
220V 50HZ
0.75KW
1-9999
1-999
30-335
70-670
60db
XQM-6
220V 50HZ
0.75KW
1-9999
1-999
30-335
70-670
60db
XQM-8
220V 50HZ
1.5KW
1-9999
1-999
35-290
70-580
60db
XQM-10
220V 50HZ
1.5KW
1-9999
1-999
35-290
70-580
60db
XQM-12
220V 50HZ
1.5KW
1-9999
1-999
35-290
70-580
65db
XQM-20
380V 50HZ
4KW
1-9999
1-999
25-215
50-430
65-db
XQM-40
380V 50HZ
5.5KW
1-9999
1-999
20-195
40-390
68db
XQM-60
380V 50HZ
7.5KW
1-9999
1-999
27-174
40-260
68db
XQM-100
380V 50HZ
11KW
1-9999
1-999
27-160
40-240
68db
Model
Capacity
Specification of milling tank
Qty
XQM-0.2
0.2L
50ml
4 set
XQM-0.4
0.4L
50ml-100ml
4 set
XQM-1
1L
50ml-250ml
4 set
XQM-2
2L
50ml-500ml
4 set
XQM-4
4L
250ml-1L
4 set
XQM-6
6L
lL-1.5L
4 set
XQM-8
8L
1L-2L
4 set
XQM-10
10L
1L-2.5L
4 set
XQM-12
12L
1L-3L
4 set
XQM-20
20L
2L-5L
4 set
XQM-40
40L
5L-10L
4 set
XQM-60
60L
10L-15L
4 set
XQM-100
100L
20L-25L
4 set
Grinding Sample
1.Material:Activated carbon
2.Grinding tank and ball: corundum tank with zirconia ball
3.Grinding method: dry grinding
4.Speed: 560rpm (rotation)
5.Selected equipment: XQM-0.4
6.Grinding tank volume: 100mLx4
7.Ginding time: 2 hours
8.Fineness: 2um
1.Material: Green tea
2.Grinding tank: stainless steel tank
3.Grinding method: dry
4.Grinding Speed: 450rpm (rotation)
5.Selected equipment: XQM-2
6.Grinding tank volume: 500mLx4
7.Grinding time: 1hour
8.Fineness: 17um
1.Material: Chinese herbal medicine
2.Grinding tank: zirconia jars
3.Grinding method: dry
4.Grinding Speed: 500rpm (rotation)
5.Selected equipment: XQM-2
6.Grinding tank volume: 500mLx4
7.Grinding time: 1hour
8.Discharge particle size:Soluble in water
1.Application: Abrasives and abrasives;
2.Material: glass powder;
3.Particle size of feeding: 0.5mm;
4.Feeding amount: 2000g;
5.Material properties: brittle;
6.Customer requirements: 35 μ m;
7. Sequential analysis: particle size analysis
8. Selected equipment: planetary ball mill XQM-4;
9.Jar and ball configuration: corundum tank with zirconia ball;
10. Operating parameters: rotation 560 rpm, grinding time of every 20 minutes in positive and reverse rotation;
11. Grinding results: 99% < 35 μ M;
12.Results (suggestion): the XQM-4 planetary mill can be used to grind glass powder
Besides the planetary ball mill machine, our factory provides all kinds of mill jars，like stainless steel mill jar, zirconia mill jar, alumina mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jar etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
Product Detail Images
Model selection guidance
Selection of size of planetary ball mill:
According to the number of materials to be ground, choose the size of the planetary mill.
Calculation formula for size selection of planetary ball mill: a = C /ρ* 3.
Note: A is the size of planetary mill (unit: l), C is the mass of primary grinding material (unit: kg), ρis the bulk density of grinding material (unit: kg /L).
For example, if 2kg of material is ground at one time and the bulk density of material is 1.5kg/L, the size of planetary mill in row a = 2/ 1.5*3 = 4L is selected.
Planetary ball mill style and special function configuration options:
Planetary ball mill is divided into vertical, horizontal, comprehensive, double planet four styles, according to the material grinding requirements, choose the corresponding styles, each style of products can be equipped with air cooling or heating equipment according to the grinding material temperature requirements.
Reference table for selection of planetary ball mill style and special function configuration
Model selection of planetary ball mill
Nature of abrasive material
Vertical planetary mill
Grinding of general materials, no special requirements
Comprehensive planetary mill or horizontal planetary mill
The material is easy to sink and bind
Double planetary mill
Ultra high speed and ultra-fine grinding are required
With air cooling device or liquid nitrogen device
The grinding process is hot and needs to be cooled
Equipped with vacuum ball milling tank
Easy to oxidize, requiring vacuum environment or atmosphere protection
With heating device
High temperature grinding required
Recommend Mill:
